- Two swing arms for use with double gates
- Gates up to 5.5m in width and 500kg in weight per arm
- 2 x 12V 7Ah backup batteries
- Waterproof and dustproof control box
- Low power consumption
If you find opening and closing your front gate is a hassle, then the Lockmaster Automatic Swing Gate Opener is just the thing you need. Designed to work with gates of up to 5.5m wide and each weighing 400kg, the automatic swing gate opener is operated by a powerful 24V 80W DC motor that runs off power from the mains. However, you can also use the supplied 40W polycrystalline solar panel to use solar power as backup. Two 12V 7Ah batteries are also supplied as further backup power. In essence, there is ample energy to work the gates in the event of any power outage. A manual release key is also included. Not least, the swing arms are made of high quality aluminium and designed for heavy duty performance as well. All components are housed in a weatherproof control box and three remote controls are provided that operate within a 30m range. There is also a stop and reverse mode with the controls. All necessary hardware for installation and an easy-to-follow set up manual and DVD are supplied together with your purchase.
Features
Two swing arms for use with double gates
Gates up to 5.5m in width and 400kg in weight per arm
2 x 12V 7Ah backup batteries

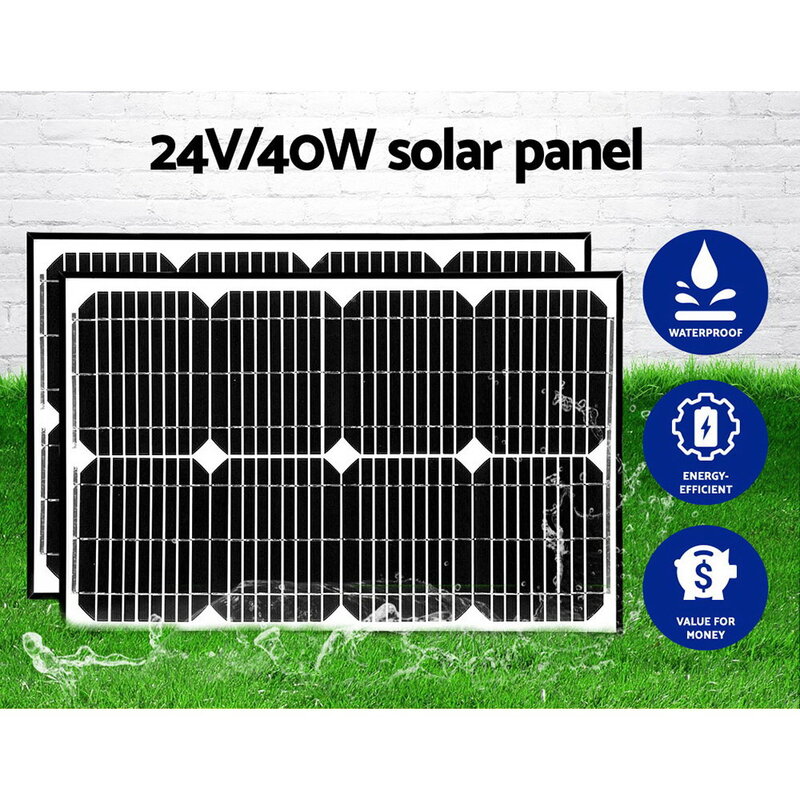

40W polycrystalline solar panel

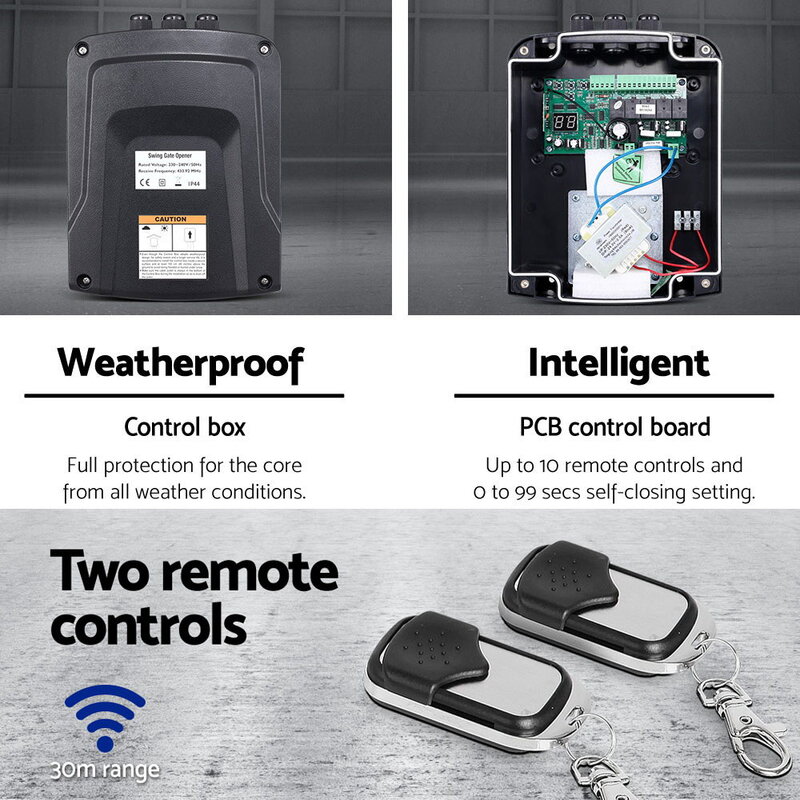

Waterproof and dustproof control box
Low power consumption
24V low voltage system

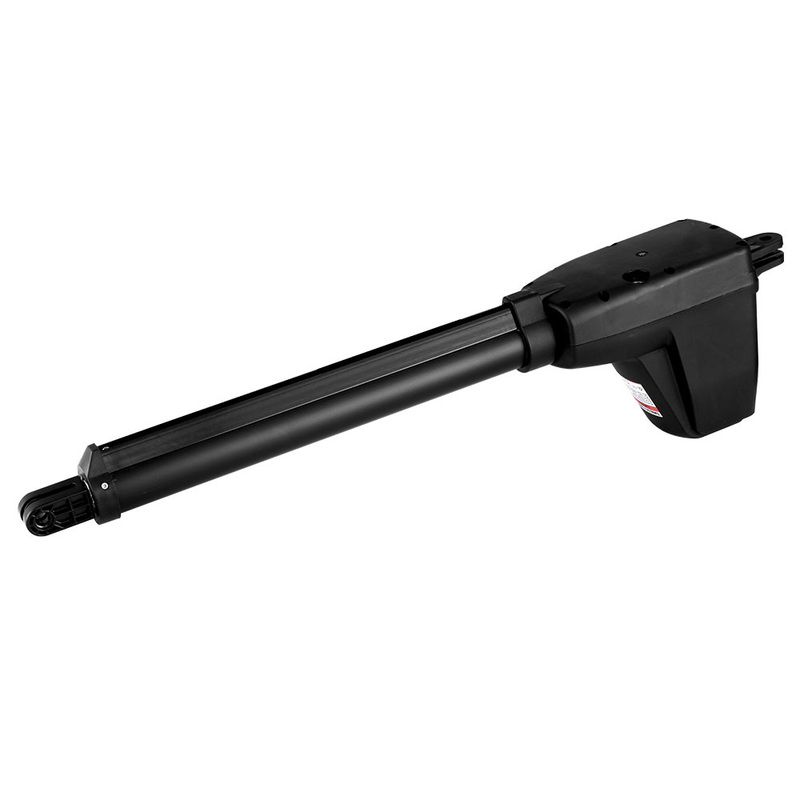

High-quality aluminium swing arm
Stop and reverse mode for obstructions
Emergency release key
2 remote controls w/ 30m operation range
Full user manual and DVD included
Installation hardware
Specifications:
Voltage: DC 24V
Input: 230V/50Hz or 120V/60Hz
Solar Panel: 40W
Power: 50W/arm
Gate weight: 400kg (per arm)
Gate width: 5.5m
Current: 3A
Actuator speed: 16mm/s

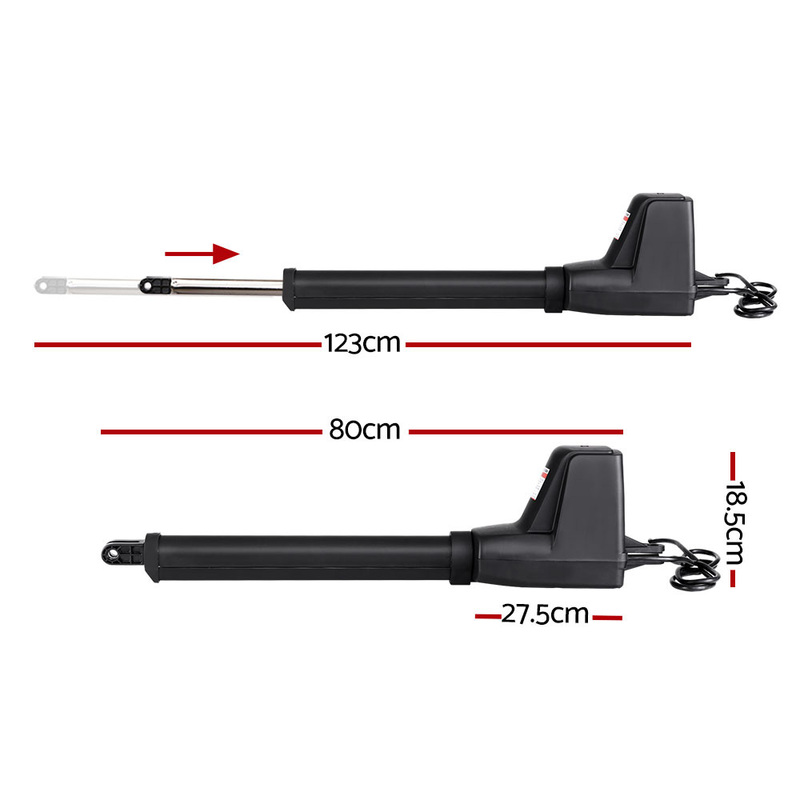

Actuator travel: 385mm
Protection class: IP44
Power supply: Solar energy / Electri
Assembly Required: Yes
Backup battery: 2X 12V 20AH AGM Battries
Remote control battery: Alkaline zinc manganese battery 12V 27A
Please note: This item comes in 2 Packages

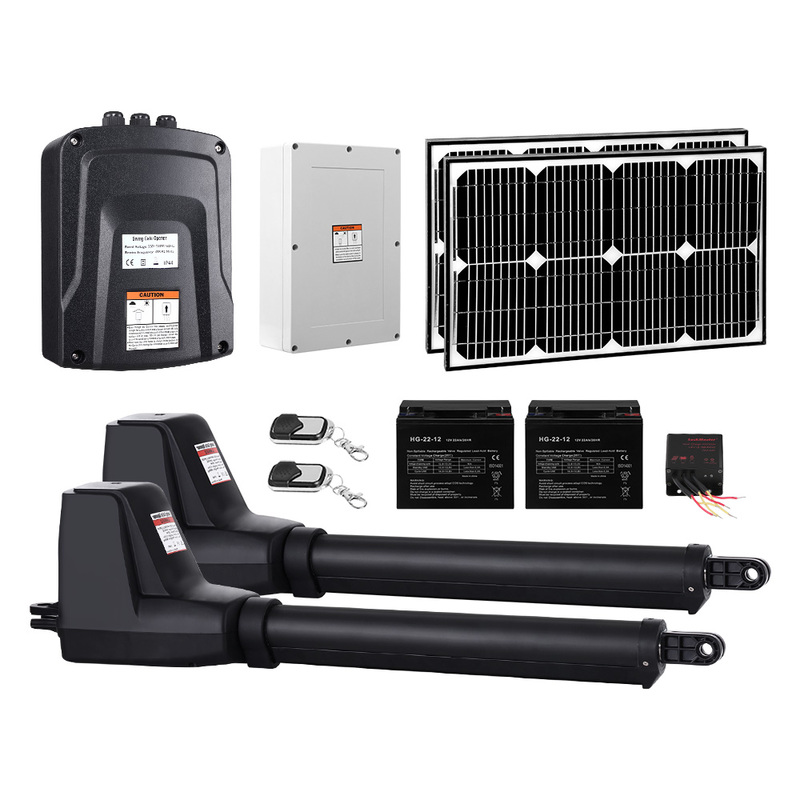

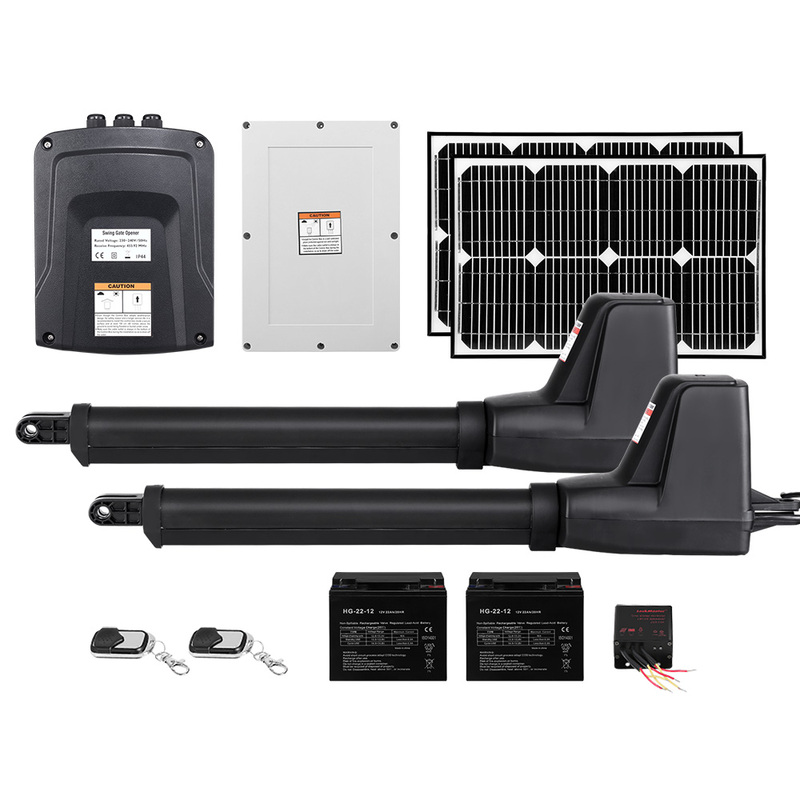

Package Content
(1) Gate Opener arm x 2
(2) Solar Panel x 2
(3) Control Box x 1
(4) User Manual x 1
(5) Remote Control x 2
(6) Installation Accessories x 1
This product comes with 1 year warranty.
